Tanks for oil

Manufactured in sheet steel in accordance with Swedish standards. The tanks are coated on the outside and untreated on the inside. The upper part is provided with manhole, G2” (f) and G1” (f) threaded connections and a G1 1/2” connection for the level sensor. The tank can also be ordered for outdoor purposes.

Order by specifying H x W x D (Total height = H + 225 mm)

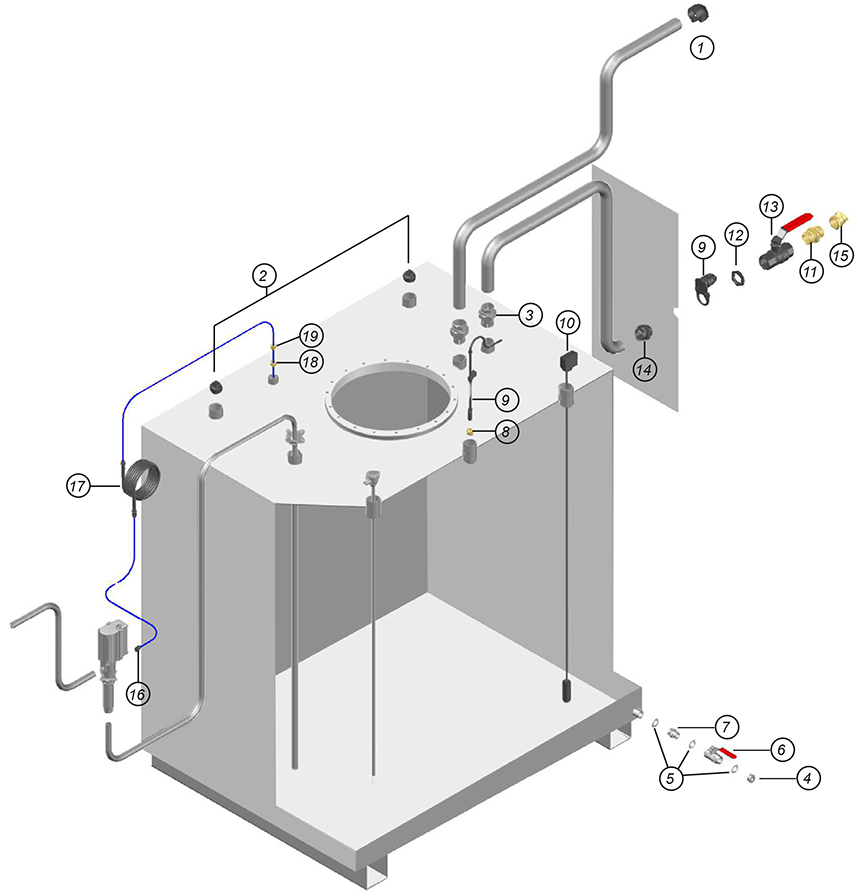

Installation kit (99414) for fresh oil tank is composed by the below listed components:
Pos. Description  Part no. Qty
1 Ventilation cap 28328 1
2 Plug G2” 9320119 2
3 Union fitting G2” 9320104 2
4 Plug G1” 25101498 1
5 Rubber/steel washer G1” 10103517 3
6 Shut-off valve 1” 30101081 1
7 Fitting steel G1”-G1” 25102011 1
8 Bushing G1”-G1/2” 25201243 1
9 Overfilling protection 23163 1
10 Level gauge 2345475 1
11 Fitting G2” 9320106 1
12 Nut G2” 9320105 1
13 Shut-off valve G2” 30101102 1
14 Fitting G2” 25201219 1
15 Filling connection G2” 28197 1
16 Bushing G1/4”-G1/8” 25101819 1
17 Hose from pressure relief valve 480013M 1
18 Bushing G1”-G3/4” 25201273 1
19 Bushing G3/4”-G1/4” 25201297 1
Our tanks are not stocked items, only delivered against order
