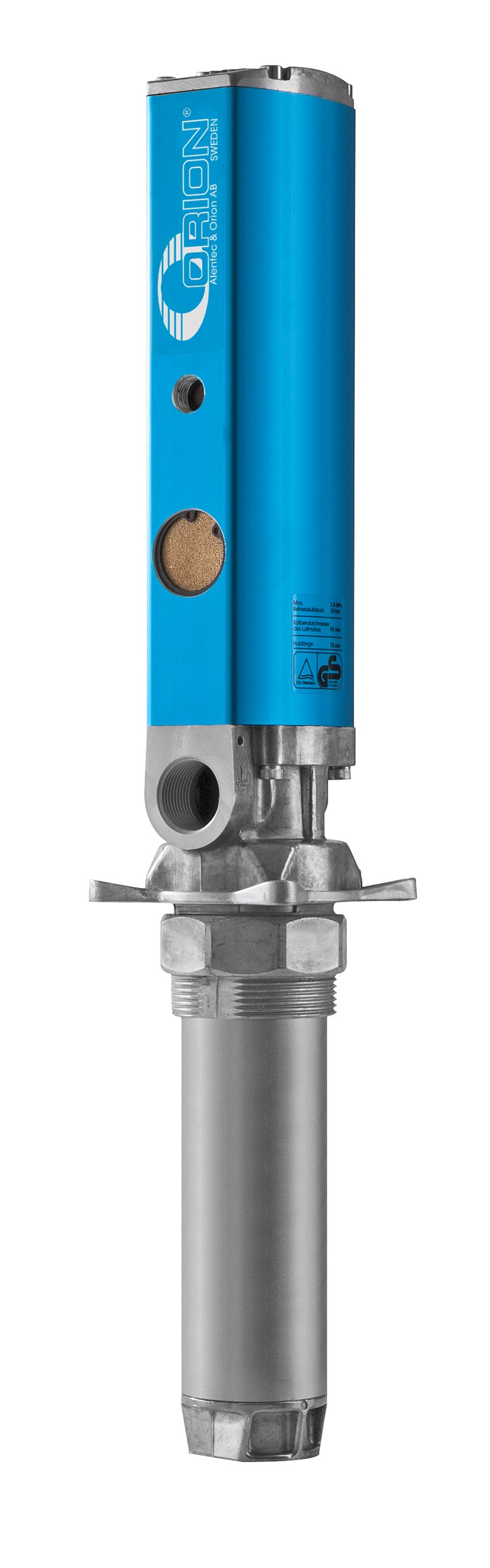

Pump 1:1 suction & waste oil stub. 18 l/min free flow

In stock

Double acting air operated oil pump for non-corrosive liquids, waste oil etc. For wall or floor installation, the pumps are designed to create maximum vacuum and will not race when there is no liquid in the suction side. Recommended when you can’t control the pumping process or when using suction probes. In other cases use the standard oil pumps.

Technical data

Part No
22802
Ratio
1:1
Capacity
18 l/min free flow
Air connection
1/4" (F) BSP
Maximum air pressure
1,0 (10) MPa (bar)
Inlet
1" (F) BSP
Outlet
3/4" (F) BSP
H.S. Code
84135069
