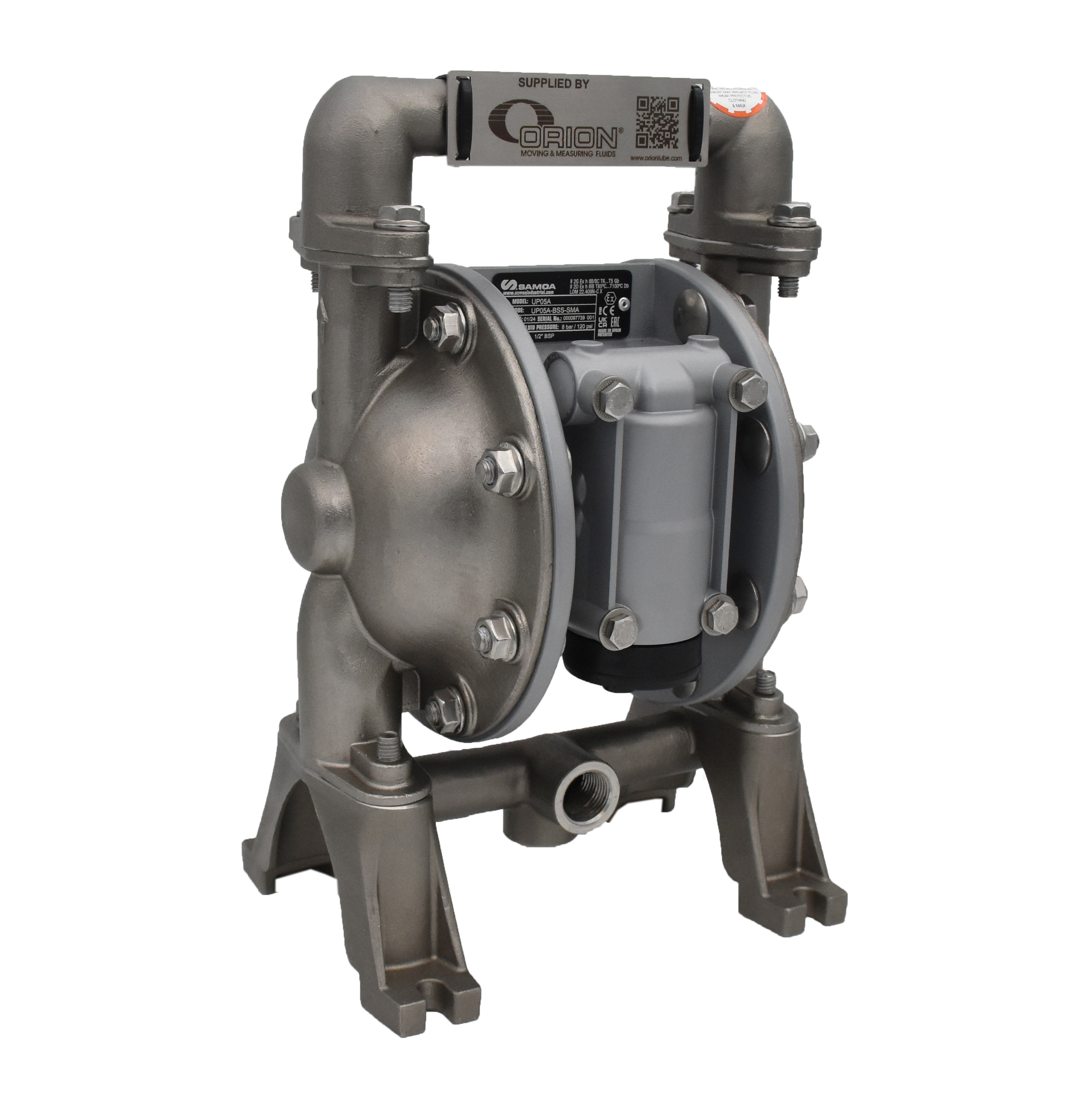

Diaphragm pump 1/2" Windscreen fluid/AdBlue® 54 l/min free flow ATEX

Stainless steel air operated diaphragm pump for wall or floor installation. For windscreen fluid, Adblue® and other corrosive liquids.

Technical data

Part No

22288

Ratio

1:1

Media

Windscreen fluid/AdBlue®

Capacity

54 l/min free flow

Air connection

1/4" (F) NPSM

Maximum air pressure

0,8 (8) MPa (bar)

Inlet

1/2" (F) BSP

Outlet

1/2" (F) BSP

Seals

PTFE / Teflon®

Max suction height

8 m

Max particle size

2,5 (3/32") mm (inch)

Material pump body

Stainless steel

Material diaphragm

Santoprene®

Material balls

Santoprene®

Material ball valve seats

Stainless steel (AISI 316)

Certification

ATEX

Weight (Gross)

4,6 kg

H.S. Code

84138100
